Monday 1 June 2009

Prototype 02 B - house addition unit

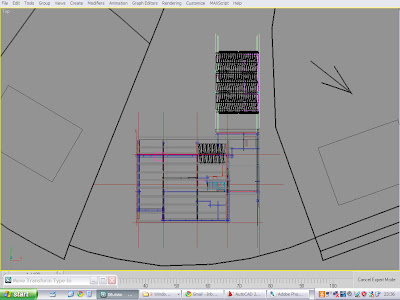

The design of prototype 02 is now being developed for house addition/ independent units (version 02B). The images show a 30m2 independent living unit. This includes three mini plywood modules for kitchen, bathroom and storage units. All services are independent of the grid, including compost toilet, underfloor water storage, 12 volt electrical systems run off solar panels with integrated eutrac beams for all data and power throughout. The roof and wall systems are polycarbonate transparent louvres and plywood panels (other lightweight materials can also be used). Not shown are the transparent bi-folding doors and fold down hatches in front to provide outside decks.
